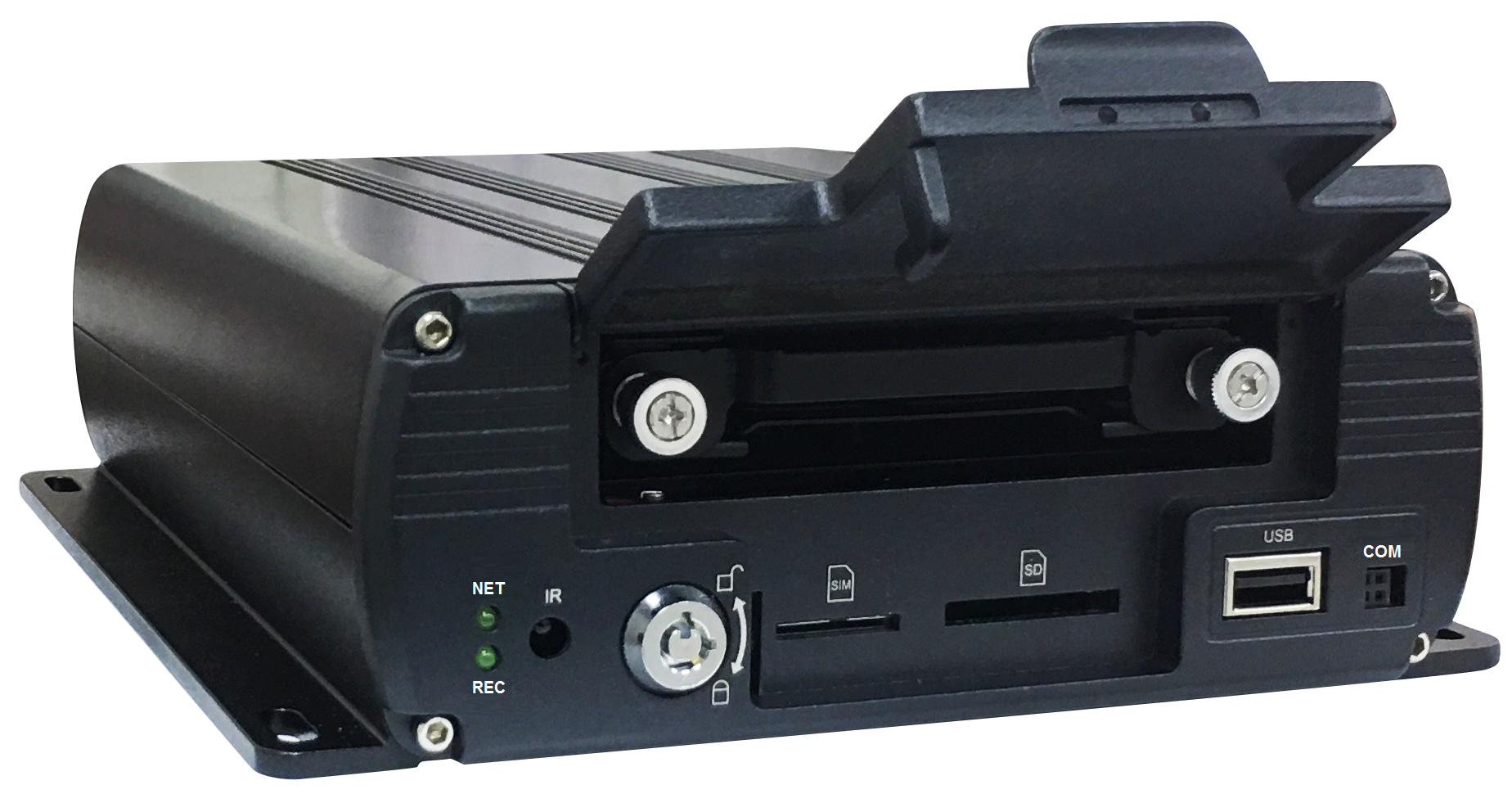

DV6012H

AHD-IPC Hybrid 12CH MDVR

  • Record

Video compress: H.264 baseline /main profile @Level 1-4.2

Resolution: 8CH AHD 1080p @15fps + 4CH IPC 1080p @30fps

Audio compress: 2CH G.711 8K/16bits

Record mode: Full record / Parking record



  • Playback

Total:1080p @120fps

Ex: 8CH AHD 1080p @15fps + 4CH IPC 1080p @30fps



  • Search mode: time index / time direct / Event
  • Video input: Aviation x 4 + IPC x 4
  • Video output: RCA x 1 / VGA x1 / HDMI x1 (1920x1080)
  • Audio input: RCAx 2
  • Audio output: RCAx1 / HDMIx 1
  • Live Display Split:  1 / 4 / 9
  • Video Channel Swap: Yes
  • Menu:GUI setup menu
  • Control: IR / Mouse
  • LED indicate: Front panel 2 LED indicate (Power / Run)
  • Storage: 2.5" SATA3 x1 (MAX: 2TB), SDxC *1 (MAX: 128G)
  • Backup: USB 2.0 / Network
  • Ethernet: RJ45 10M/100M  x1 + 4PON for internet IPC connection
  • Optional Network: 3G/ 4G / Wifi
  • Alarm Input: 4 CH
  • Alarm Output: 2CH TTL output
  • Support: GPS / G-Sensor / Car speeding pulse in / Buzzer / RTSP / Temperature sensor / Car Voltage Detect
  • Optional Support: TPMS / RS485 (PTZ  Pelco - P / D)/ RS232
  • Language: Multi Language
  • Administrable password: Two level password for System & Storage format
  • System fail report: Temperature / HDD / SD / Voltage / GPS / G-sensor
  • Boot delay: 0 ~ 10 sec
  • Power Loss Protection: 3 ~ 5 sec
  • Power Control : DC12V @3A output (independent fuse)
  • Power in: DC9 ~ 36V
  • Power consumption: 8.4W
  • Operation Temperature: -25°C - +70°C



Software

  • PC playback viewer: playback SD/HDD records under non-network process
  • VMS - CarGisplayer (Optional): server / client remote viewer
  • Mobile APP - Guard VMS (Optional): iOS / Android client remote viewer / Event Message / Push Video
