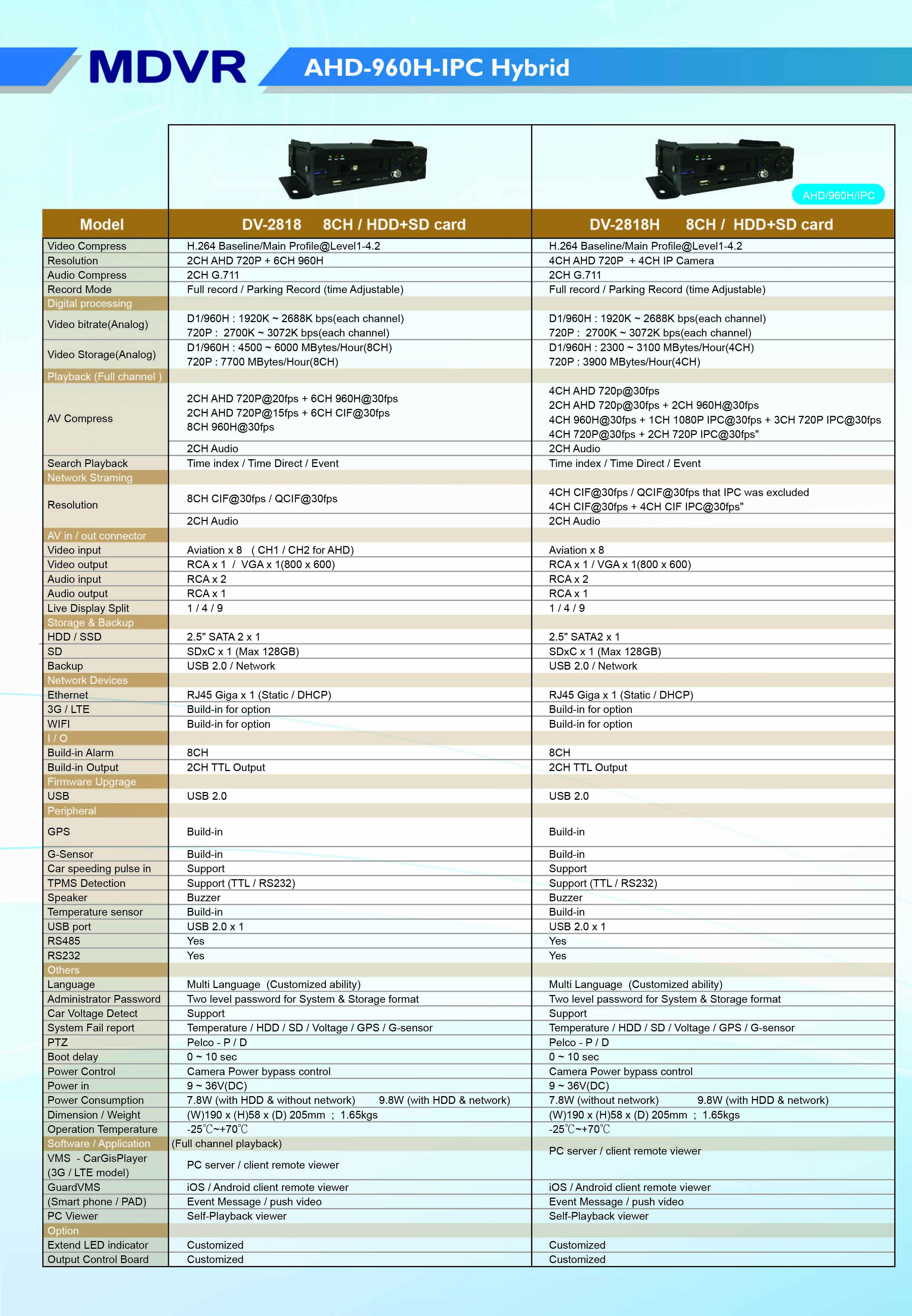

Specifications​



• Record

Video compress: H.264 baseline /main profile @Level 1-4.2

Resolution: 2CH AHD + 6CH 960H

Audio compress: 2CH G.711

Record mode: Full record / Parking record

Jpeg capture: 720p / 960H / D1 jpg

• Playback

2CH 720p @15fps + 6CH 960H@20fps

2CH 720p @15fps + 6CH CIF@30fps

8CH 960 @30fps

• Search mode: time index / time direct / Event
• Networking streaming

Resolution: 8CH  CIF @30fps / QCIF @30fs

                  2CH Audio

• Ethernet: RD45 giga x1 (static / DHCP)
• Optional: 3G/ 4G / Wifi
• Build-in Alarm: 8 CH
• Build-out Output: 2CH TTL output
• Video input: BNC x 8 (CH1~CH2 for AHD)
• Video output: RCA x 1 / VGA x1 (800x600) Audio input x 2 / output x 1
• TPMS: Support (TTL / RS232)
• Speaker: Buzzer
• Temperature sensor: Build-in
• Cooler: Fanless
• Storage: 2.5" SATA HDD ( MAX: 1TB )
• USB port  USB 2.0 x 1
• RS485: Yes (PTZ)
• RS232: Yes (TPMS)
• Language: Multi Language
• Support: RTSP / Alarm speech / TPMS(TTL/RS232) / Car speeding pulse in / Car Voltage Detect
• Administrable Two level password for System & Storage format
• System fail report: Temperature / HDD / SD / Voltage / GPS / G-sensor
• PTZ  Pelco - P / D
• Boot delay: 0 ~ 10 sec
• Power Control Camera Power bypass control
• Power in: DC9 ~ 36V
• Power out: by pass control
• Power consumption: 7.8W (with HDD, without network)
• Operation Temperature: -25°C - +70°C​



Software​

• PC playback viewer: Yes
• VMS - CarGisplayer: server / client remote viewer
• Smart phone - Guard VMS app:iOS / Android client remote viewer / Event Message / Push Video​
