DV-2808X

AHD-960 Hybrid 8CH MDVR with GPS

Catalog:Download

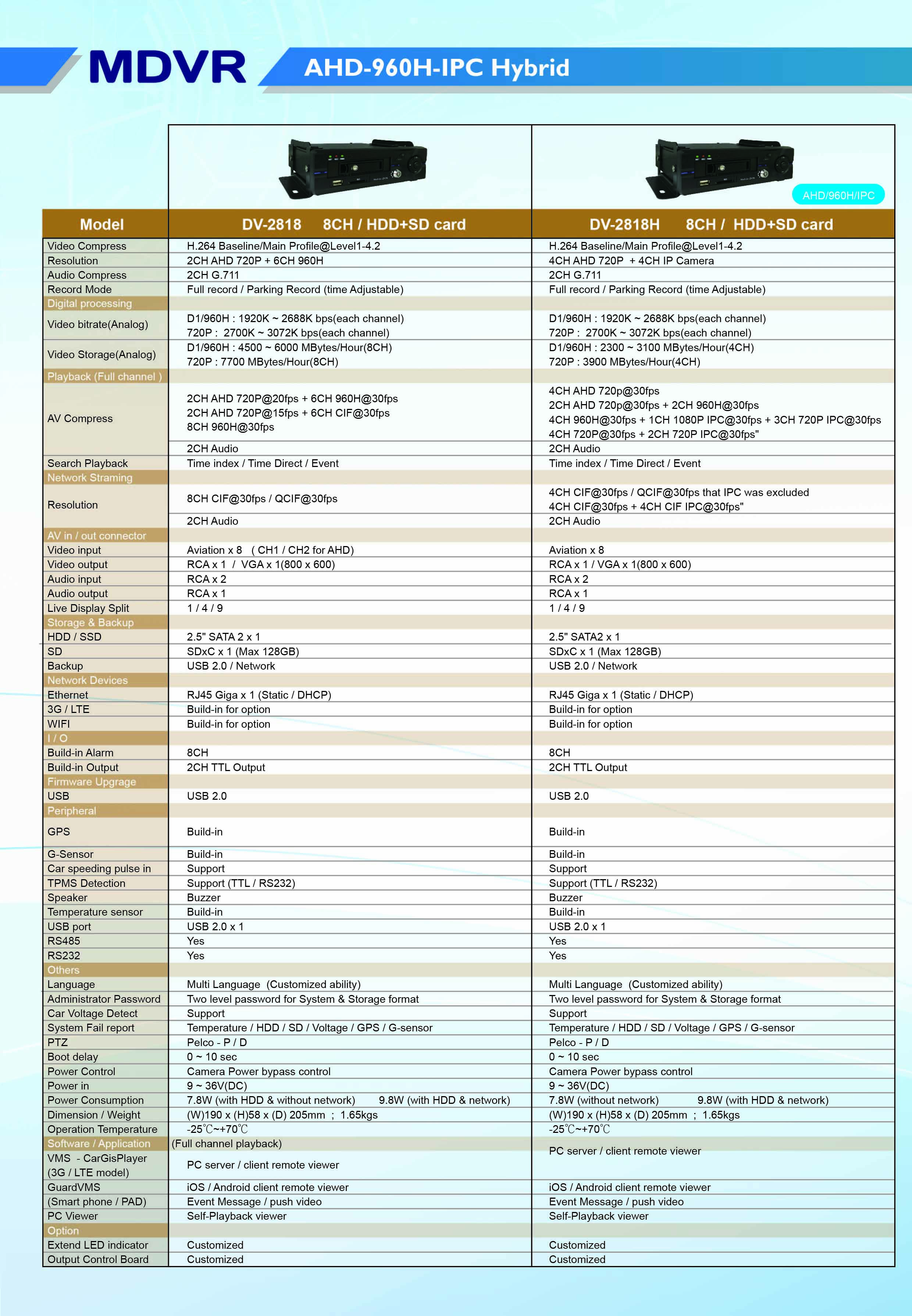

Specifications



  • Record

Video compress: H.264 baseline /main profile @Level 1-4.2

Resolution: 2CH AHD + 6CH 960H

Audio compress: 2CH G.711

Record mode: Full record / Parking record

Jpeg capture: 720p / 960H / D1 jpg

  • Playback

2CH 720p @15fps + 6CH 960H@20fps

2CH 720p @15fps + 6CH CIF@30fps

8CH 960 @30fps

  • Search mode: time index / time direct / Event
  • Networking streaming

Resolution: 8CH  CIF @30fps / QCIF @30fs

                  2CH Audio

  • Ethernet: RJ45 giga x1 (static / DHCP)
  • Optional: 3G/ 4G / Wifi
  • Build-in Alarm sensor: 8 CH
  • Build-out Output: 2CH TTL output
  • Video input: BNC x 8 (CH1~CH2 for AHD)
  • Video output: RCA x 1 / VGA x1 (800x600) Audio input x 2 / output x 1
  • TPMS: Support (TTL / RS232)
  • Speaker: Buzzer
  • Temperature sensor: Build-in
  • Cooler: Fanless
  • Storage: 2.5" SATA HDD ( MAX: 1TB )
  • USB port  USB 2.0 x 1
  • RS485: Yes (PTZ)
  • RS232: Yes (TPMS)
  • Language: Multi Language
  • Support: RTSP / Alarm speech / TPMS(TTL/RS232) / Car speeding pulse in / Car Voltage Detect
  • Administrable Two level password for System & Storage format
  • System fail report: Temperature / HDD / SD / Voltage / GPS / G-sensor
  • PTZ  Pelco - P / D
  • Boot delay: 0 ~ 10 sec
  • Power Control Camera Power bypass control
  • Power in: DC9 ~ 36V
  • Power out: by pass control
  • Power consumption: 7.8W (with HDD, without network)
  • Operation Temperature: -25°C - +70°C



Software

  • PC playback viewer: Yes
  • Smart phone - Guard VMS app:iOS / Android client remote viewer / Event Message / Push Video
