KF-3248

12PCS LED IR CAMERA

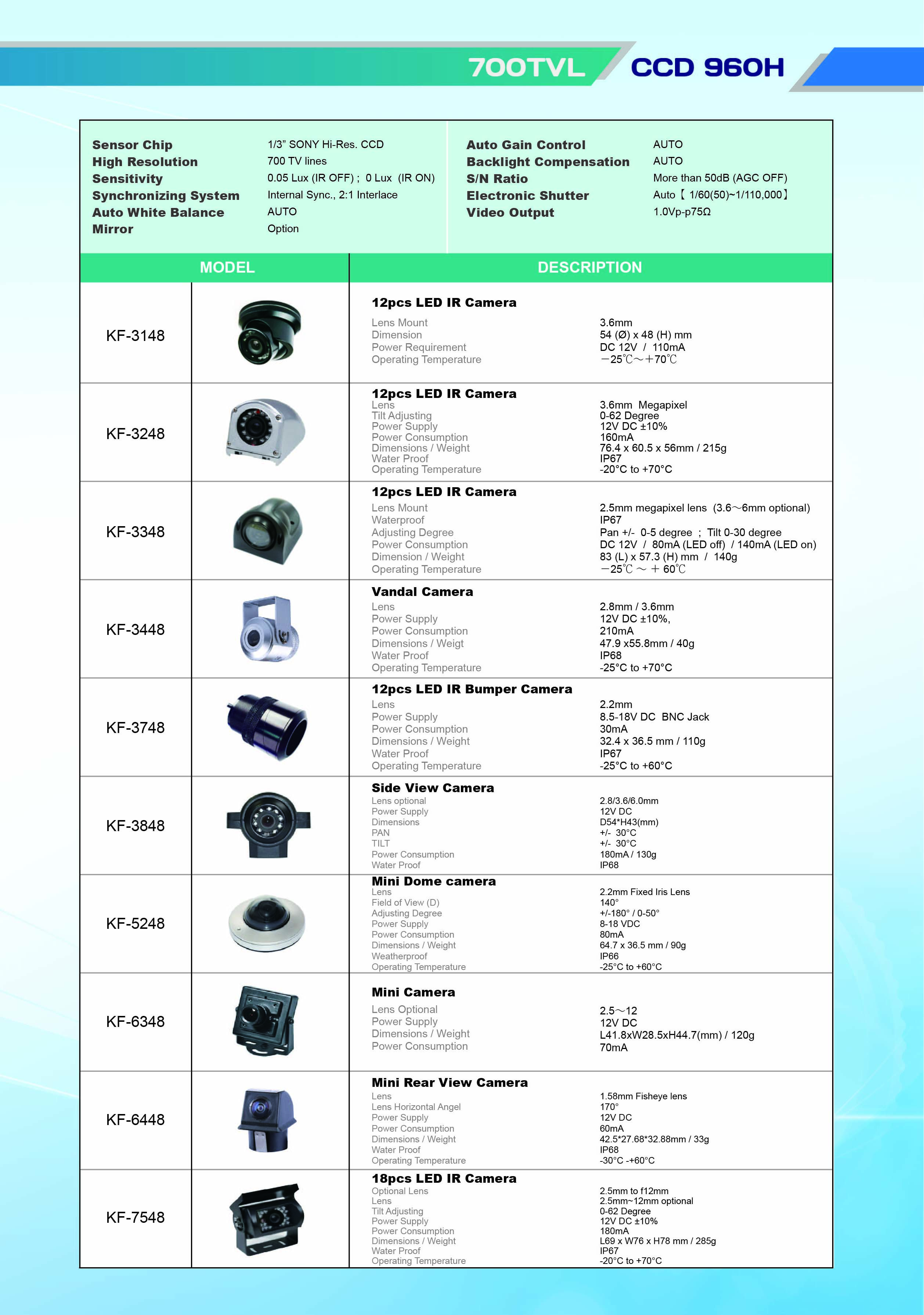

Catalog：Download

  • 1/3” SONY Hi-Res. CCD
  • 700 TV lines
  • Sensitivity : 0 Lux(IR on)
  • Infrared Ray LED:12 pcs
  • Synchronizing System: Internal Sync., 2:1 Interlace
  • Mirror : optional
  • Auto White Balance
  • Auto Gain Control
  • Backlight Compensation AUTO
  • S/N Ratio More than 50dB (AGC OFF)
  • Gamma Compensation 0.45
  • Electronic Shutter : Auto【 1/60(50)~1/110,000】
  • Video Output : 1.0Vp-p75Ω
  • Lens Mount : 2.5mm megapixel lens
  • Waterproof: IP67
  • DC 12V /  80mA(LED off) / 140mA(LED on)
  • 76.4 x 60.5 x 56 mm  /  215g
  • Operating Temperature : -  25℃～＋70℃
