KF-3348

700TVL car camera with ir

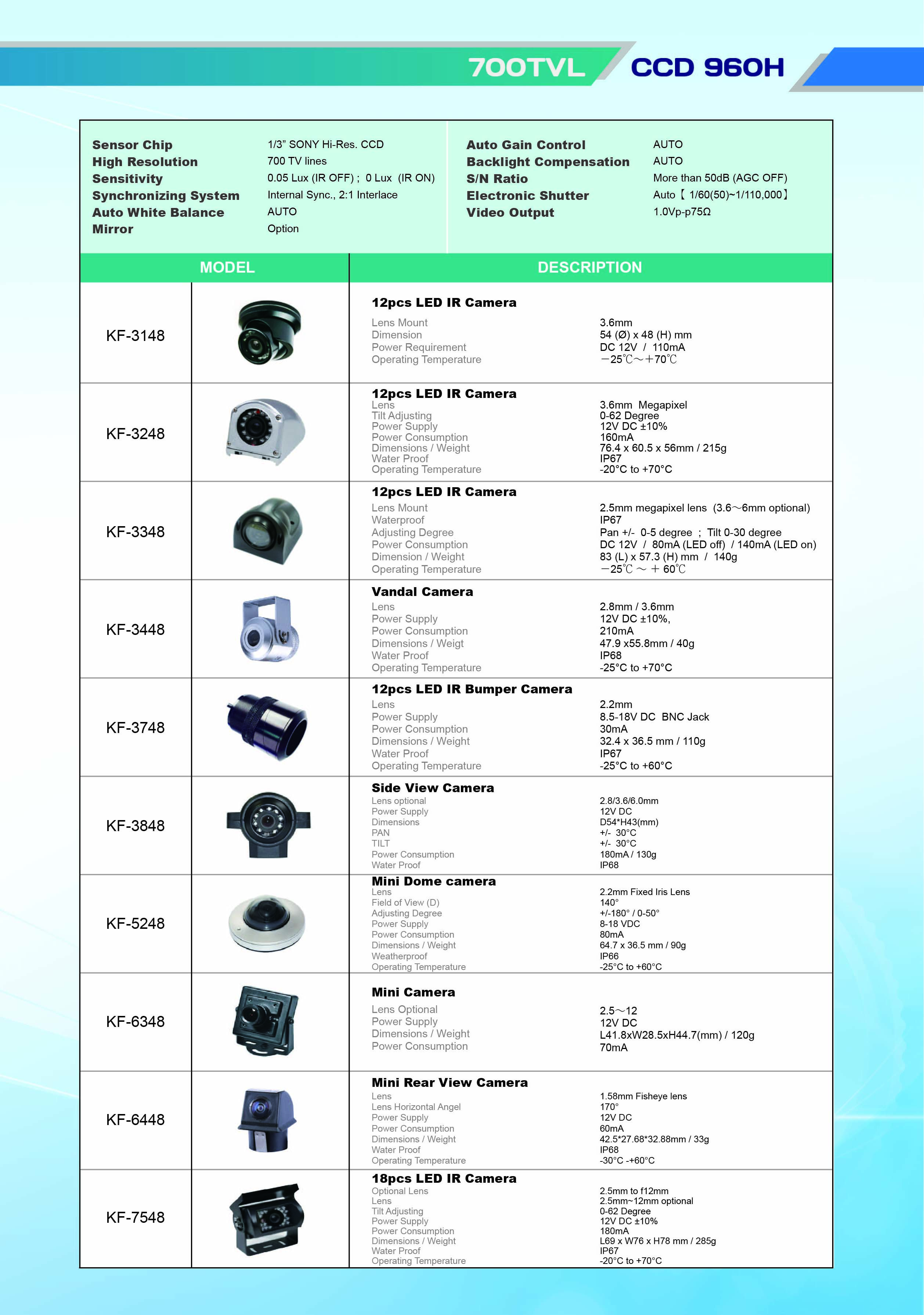

Catalog：Download

  • 1/3” SONY Hi-Res. CCD
  • 700 TV lines
  • Sensitivity : 0 Lux(IR on)
  • Infrared Ray LED:12 pcs
  • Synchronizing System: Internal Sync., 2:1 Interlace
  • Mirror : optional
  • Auto White Balance
  • Auto Gain Control
  • Backlight Compensation AUTO
  • S/N Ratio More than 50dB (AGC OFF)
  • Gamma Compensation 0.45
  • Electronic Shutter : Auto【 1/60(50)~1/110,000】
  • Video Output : 1.0Vp-p75Ω
  • Lens Mount : 2.5mm megapixel lens(3.6mm, 6mm optional)
  • Waterproof: IP67
  • Adjusting Degree: Pan +/-  0-5 degree  ;  Tilt 0-30 degree
  • DC 12V /  80mA(LED off) / 140mA(LED on)
  • 83 (L) x 57.3 (H) mm  /  140g
  • Operating Temperature : -  25℃～＋60℃
