IP-5335

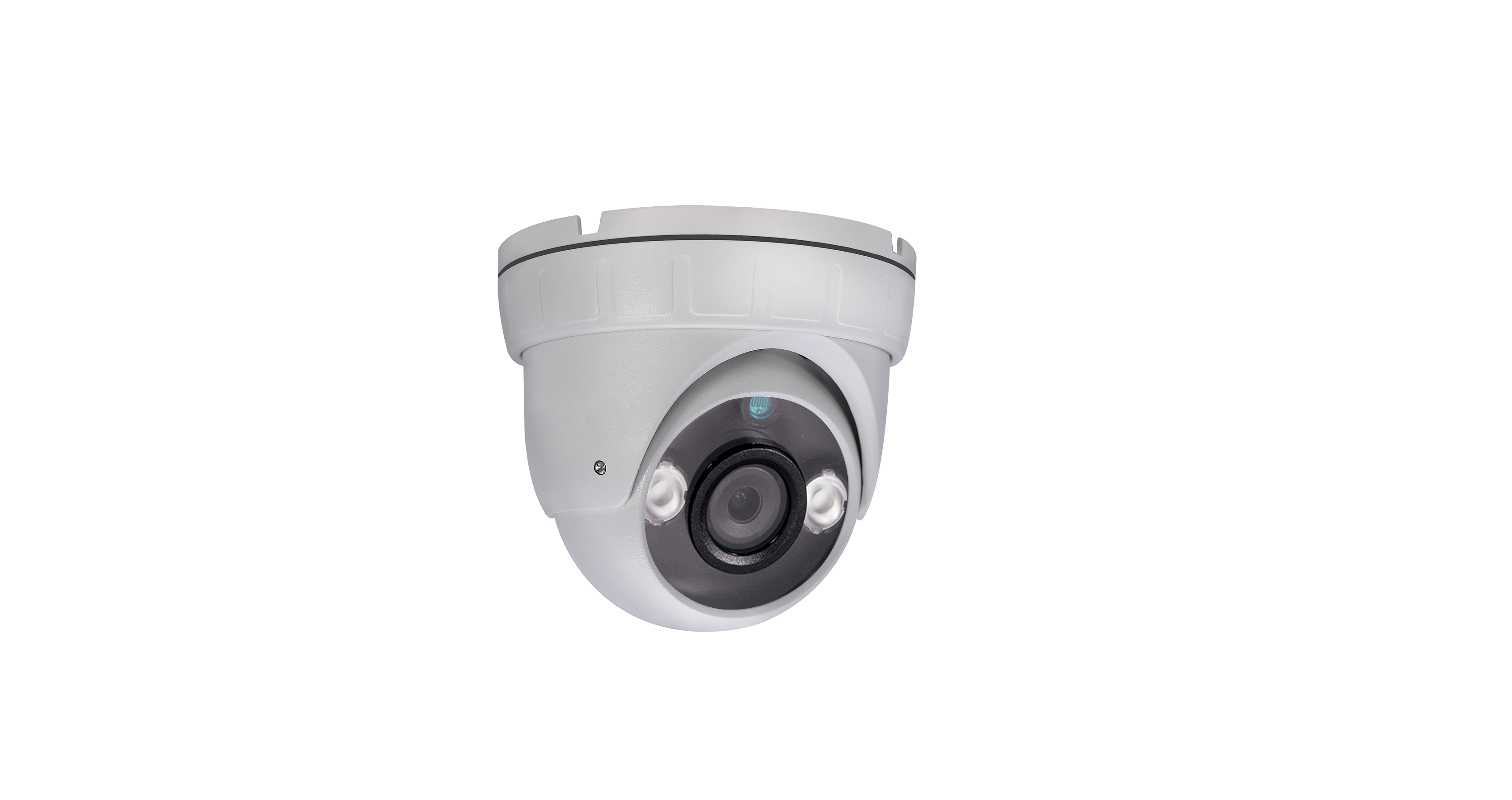

4MP 30M IR Network Dome

  • Video Stream  Dual-stream: Main stream: 2592*1520/2304*1296/1920*1080/1280*720
  •                         Sub stream: 1280*720/640*480/704*480/352*240
  • Stream Type: Complex stream / Video stream
  • Effective Pixels: 2592 x 1520
  • Encoding System: Constant bit rate, Variable bit rate optional
  • Video Bit Rate: 64Kbps-10Mbp
  • Motion Detection: Can set a single detection zone, multi-level sensitivity can be set
  • Video Mask : 4 areas
  • Screen Capture : Support JPEG format，max. resolution based on encoding resolution
  • Password Protection : Yes
  • Character Display : Channel name ; Date
  • Alarm Function : Video loss /  Network disconnect / Tampering
  • Protocol: TCP/IP,UDP,HTTP,RTP/RTSP,NTP,
  • Port Protocol: ONVIF (2.4.1 Above)



  • CAMERA
  • Image Sensor : 1/3”CMOS
  • Min. Illumination :  0.6Lux@F1.2 / Color  ;  0.08 Lux@F1.2 (B/W)
  • Electronic Shutter: Auto / Manual（1/30~1/5000）
  • POE: Optional
  • Day / Night : Auto / B/W / Color / ICR switching
  • Video OSD : DWDR, Mirror, 3D Noise reduction, Sharpness / Lightness adjustable
  • IR Distance : 30M
  • Lens : 3.6mm 4Megapixel fixed iris lens (6mm / 8mm optional)
  • Network Interface : RJ45 10M/100M adaptive
  • Operating Temperature : -10°C ~ 55°C
  • Power Supply  : DC12V
  • Power Consumption :  3W (Max.)
  • Dimensions / Weight : 93.4(Ø)) x83.6 (H) mm / 500g
